Milling, Drilling & Tapping of a Nylon Roller Adjustment Block
( Click image to enlarge )

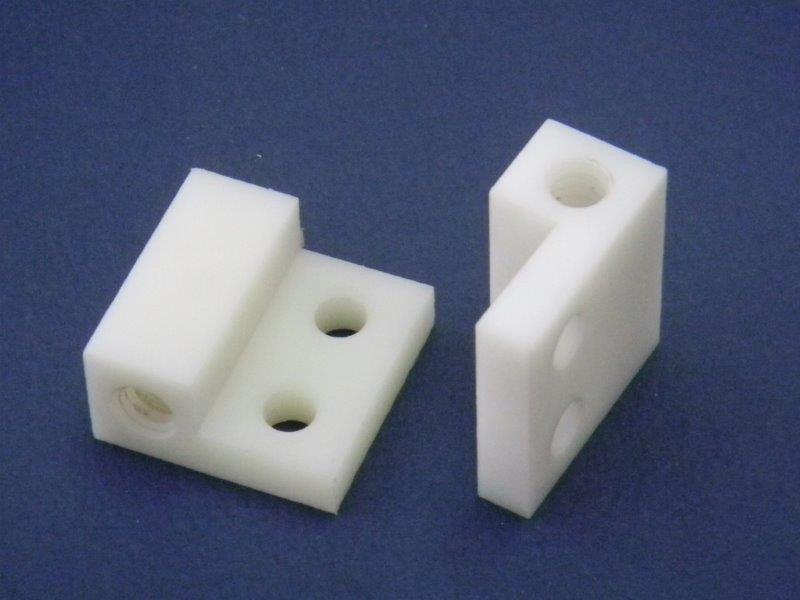

As a full service provider of machined products, at Ohio Metal Products we can produce precision parts from a wide range of materials. Recently one of our clients contracted us to custom-manufacture a quantity of small blocks used for roller adjustment.
The part was formed from nylon flat stock which was saw cut to rough dimensions before moving onto our vertical machining center. All surfaces were milled, two holes were drilled, and a through hole was drilled and tapped. The final product measured 1-1/64” long, 1-1/64” wide, and 33/64” high, with tightest tolerances for this product running at ±.002”. We now manufacture 1500 of these parts per year for delivery to our customer.
For further information about this project, please take a look at the following chart or feel free to contact us directly.
Specifications of this Milled, Drilled, and Tapped Nylon Roller Adjustment Block Project
- Product Name
- Block
- Product Description
- Roller Adjustment
- Capabilities Applied
- Milling
Drilling
Tapping
- Length
- 1-1/64 in.
- Width
- 1-1/64 in.
- Height
- 33/64 in.
- Tightest Tolerance
- ± .002 in.
- Material Used
- Rectangular Nylon Flat Stock
- Quantity
- 1,500 per year
- Machining Operations
- Sawing
Vertical Milling
Drilling
- Standards Met
- Customer Supplied Design
